If you’re looking for an efficient and effective way to treat wastewater, then sequencing batch reactor (SBR) technology is the answer you’ve been searching for. SBR technology offers a versatile and adaptable approach to wastewater treatment, allowing for improved removal of contaminants and the flexibility to handle varying flow rates. With its unique batch process, SBR technology provides an efficient and reliable solution for treating wastewater, ensuring cleaner and healthier water for our environment.
Sequencing Batch Reactor (SBR) Technology
Overview
Sequencing Batch Reactor (SBR) technology is an effective and versatile wastewater treatment process. It is a biological treatment method that combines various phases within a single reactor, making it a flexible and efficient choice for wastewater treatment plants. This article will provide a comprehensive overview of SBR technology, including its process description, advantages, disadvantages, and various phases involved in the treatment process.
Process Description
The SBR process consists of several distinct phases: filling, reacting, settling, and decanting. Each phase plays a crucial role in the treatment process and contributes to the overall efficiency of the system.
Filling
During the filling phase, influent wastewater is pumped into the reactor. This is typically done using an influent pumping system, which ensures a controlled and consistent flow of wastewater into the reactor. The fill time is an important parameter that determines the duration of this phase.
Reacting
Once the reactor is filled, the reacting phase begins. Aeration and mixing are key components of this phase. During aeration, oxygen is introduced into the reactor to promote the growth of microorganisms that break down organic matter in the wastewater. Mixing ensures that the microorganisms and wastewater are thoroughly mixed, allowing for efficient treatment. The duration of the mixing phase, known as mixer time, affects the overall treatment efficiency. The concentration of mixed liquor suspended solids (MLSS) is monitored during this phase to ensure optimal treatment conditions.
Settling
Following the reacting phase, the settling phase allows the solids in the wastewater to settle at the bottom of the reactor. Sedimentation occurs during this phase, where the solid particles separate from the liquid. The duration of the settling phase, known as settling time, is crucial in achieving proper solids separation. The sludge volume index (SVI) is monitored to assess the settling efficiency of the reactor.
Decanting
In the final phase, known as the decanting phase, the clarified effluent is withdrawn from the reactor. This process involves carefully removing the treated water from the top of the reactor while leaving the settled solids undisturbed at the bottom. The decant time determines the duration of this phase.
Advantages
SBR technology offers numerous advantages for wastewater treatment applications. Some of the key advantages include:
-
Flexibility: SBR systems can be easily adapted to handle varying influent flow rates, making them suitable for both small-scale and large-scale treatment facilities.
-
High Treatment Efficiency: The sequential nature of the SBR process allows for optimal treatment conditions and efficient removal of organic matter, nutrients, and suspended solids.
-
Nutrient Removal: SBR technology can be designed to incorporate biological nutrient removal processes, such as nitrogen and phosphorus removal, resulting in enhanced treatment capabilities.
-
Sludge Management: The settling phase of the SBR process facilitates the production of a compact and dense sludge, reducing the volume of waste generated and simplifying the sludge management process.
Disadvantages
Despite its many advantages, SBR technology also has some limitations. These include:
-
Energy Consumption: Aeration and mixing processes in SBR systems require energy inputs, resulting in operational costs and energy consumption.
-
Complex Control Systems: SBR systems typically require advanced control systems, such as sequential batch controllers or programmable logic controllers (PLCs). These systems can be complex and require expertise to operate and maintain effectively.
-
Space Requirements: SBR systems may require larger reactor volumes and additional space compared to other treatment technologies, making them more suitable for larger treatment facilities.
Process Flow
The process flow in a SBR system follows a specific sequence of phases, each with its own purpose and role in wastewater treatment. Understanding the details of each phase is essential for optimizing the treatment process.
Filling
The filling phase involves the controlled pumping of influent wastewater into the reactor. The influent pumping system ensures a consistent flow of wastewater while maintaining proper mixing within the reactor. The fill time, or the duration of the filling phase, is determined by the flow rate of the influent and the reactor volume.
React Phase
The react phase is the heart of the SBR process, where biological treatment occurs. This phase consists of aeration and mixing.
During aeration, oxygen is added to the reactor to promote the growth of microorganisms that break down organic matter. This oxygenation is achieved through diffusers or mechanical aerators, depending on the system design. The duration of the aeration phase is crucial for achieving optimal treatment efficiency.
Mixing ensures that the microorganisms and wastewater are thoroughly mixed, providing equal contact between the microorganisms and the wastewater. Proper mixing prevents settling of solids and allows for effective treatment. The optimal duration of the mixing phase, known as mixer time, depends on the specific requirements of the wastewater being treated.
The concentration of mixed liquor suspended solids (MLSS), which represents the concentration of microorganisms in the reactor, is closely monitored during the react phase. MLSS levels indicate the population of microorganisms and the treatment efficiency.
Settle Phase
Following the react phase, the settle phase allows the solid particles in the wastewater to settle at the bottom of the reactor through the process of sedimentation. During settling, the treated water becomes clear as the solids settle down. The duration of the settle phase, known as settling time, is critical to achieving proper solid-liquid separation.
The sludge volume index (SVI) is a key parameter monitored during the settle phase. SVI is a measure of the settleability of the sludge, indicating how well the solids can separate from the liquid. A low SVI value indicates better settling characteristics and efficient sludge separation.
Decant Phase
In the final phase of the SBR process, the clarified effluent is withdrawn from the reactor without disturbing the settled solids. This phase, known as the decant phase, ensures the removal of the treated water while leaving behind the settled sludge. The decant time determines the duration of this phase, which is optimized to minimize the carryover of solids in the effluent.
Fill Phase
The fill phase is the initial step in the SBR process, where the influent wastewater is pumped into the reactor for treatment.
Influent Pumping
During the fill phase, an influent pumping system is used to control the flow of wastewater into the reactor. The system ensures a consistent and controlled inflow rate, allowing for optimal treatment conditions. Influent pumping systems vary in design and can involve submersible pumps, electric pumps, or other types of equipment. The choice of system depends on the specific requirements of the treatment facility.
Fill Time
The fill time is the duration it takes to fill the reactor with influent wastewater. The fill time is determined by the flow rate of the influent and the volume of the reactor. It is critical to have an appropriate fill time to ensure proper mixing of the wastewater and the microorganisms present in the reactor.
React Phase
The react phase is where the actual biological treatment takes place in the SBR process. This phase involves aeration, mixing, and monitoring of key parameters.
Aeration
During the react phase, aeration is an essential component of the treatment process. Oxygen is introduced into the reactor to create aerobic conditions, which support the growth of microorganisms responsible for organic matter degradation. Proper aeration ensures sufficient dissolved oxygen (DO) levels for microorganism activity, maximizing the treatment efficiency. Aeration can be achieved through diffused air, mechanical aerators, or other aeration methods.
Mixing
Mixing plays a crucial role in the react phase by ensuring uniform distribution of microorganisms and wastewater. Effective mixing prevents the settling of solids and allows for better contact between microorganisms and the wastewater. Mixing can be achieved through mechanical mixers, surface agitation, or other mixing mechanisms. The mixer time, or the duration of mixing, varies depending on the specific wastewater characteristics and treatment requirements.
Mixer Time
The mixer time refers to the duration during which mixing occurs in the reactor. It is an important parameter to consider as it affects the treatment efficiency. The optimal mixer time depends on factors such as the type and concentration of pollutants in the wastewater, the desired degree of treatment, and the specific design of the SBR system.
Mixed Liquor Suspended Solids (MLSS)
During the react phase, the concentration of mixed liquor suspended solids (MLSS) is monitored. MLSS represents the concentration of microorganisms, organic matter, and other suspended solids in the reactor. It serves as an indicator of the microbial activity and treatment efficiency. MLSS levels are typically measured in milligrams per liter (mg/L) and should be carefully controlled to ensure optimal treatment conditions.
Settle Phase
The settle phase in the SBR process is crucial for solid-liquid separation and the creation of a clarified effluent.
Sedimentation
During the settle phase, solid particles present in the wastewater settle at the bottom of the reactor through the process of sedimentation. Sedimentation relies on the difference in density between the solids and the liquid. As the solids settle down, the treated water becomes clear, indicating the successful separation of solids. Proper sedimentation ensures the removal of settled solids from the liquid phase.
Settling Time
The settling time is the duration that allows the solids to settle at the bottom of the reactor. It is a critical parameter to control for effective solid-liquid separation. The settling time varies depending on the composition and concentration of solids in the wastewater, as well as the specific design of the SBR system. Optimizing the settling time ensures the removal of settled solids and the production of a clarified effluent.
Sludge Volume Index (SVI)
The sludge volume index (SVI) is an important parameter monitored during the settling phase. SVI measures the settleability of the sludge, indicating how well the solids can separate from the liquid. It is calculated by dividing the volume of settled sludge by the volume of the settled solids. A lower SVI value indicates better settleability, meaning that the solids settle more efficiently. Monitoring and controlling SVI helps optimize the solid-liquid separation process and ensures the production of a high-quality effluent.
Decant Phase
In the decant phase of the SBR process, the clarified effluent is carefully withdrawn from the reactor without disturbing the settled solids.
Effluent Withdrawal
Effluent withdrawal involves removing the treated water from the top of the reactor. This is typically done using a decanting system designed specifically for SBR technology. The system ensures the removal of the clarified effluent while leaving the settled solids undisturbed at the bottom. Effluent withdrawal can be done through pumps, gravity flow, or other methods, depending on the configuration of the treatment facility.
Decant Time
The decant time is the duration during which the clarified effluent is withdrawn from the reactor. It is an important parameter to optimize to minimize the carryover of solids in the effluent. The decant time is determined by factors such as the flow rate of the effluent, the desired effluent quality, and the settling characteristics of the solids. Proper control of the decant time ensures the production of a clear and high-quality effluent.
Control Systems
The operation of SBR systems relies on advanced control systems to regulate and automate the various phases and parameters involved in the treatment process.
Sequential Batch Controller
The sequential batch controller is a control system specifically designed for SBR technology. It controls and coordinates the timing and duration of the different phases, including filling, reacting, settling, and decanting. The sequential batch controller ensures that each phase is executed according to the predefined sequence, optimizing treatment efficiency and maintaining consistent performance.
Programmable Logic Controller (PLC)
Programmable Logic Controller (PLC) is another control system commonly used in SBR technology. PLCs are versatile and programmable devices that control and monitor the operations of the SBR system. They can be customized to match the specific requirements of the treatment process and can integrate with various sensors and instruments for data acquisition and process control. PLCs offer flexibility, reliability, and ease of operation, making them a popular choice for controlling SBR systems.
Monitoring and Performance
Proper monitoring and assessment of key parameters are essential to ensure the effective operation and performance of SBR systems.
pH Levels
Monitoring pH levels is crucial in SBR systems, as it indicates the acidity or alkalinity of the wastewater. Proper pH control is essential for maintaining optimal treatment conditions and microbial activity. The pH levels must be monitored regularly and adjusted as needed to ensure efficient treatment and avoid any adverse effects on the microorganisms.
Dissolved Oxygen (DO)
Dissolved oxygen (DO) levels play a vital role in the treatment efficiency of SBR systems. The availability of oxygen is crucial for the growth and activity of aerobic microorganisms responsible for organic matter degradation. DO levels must be carefully monitored and controlled to ensure that there is sufficient oxygen for microbial activity. This can be achieved through aeration systems and proper mixing.
Nutrient Removal
SBR technology can be designed to incorporate biological nutrient removal processes, such as nitrogen and phosphorus removal. These processes rely on specific microbial populations that can remove nutrients from the wastewater, improving the treated effluent quality. Monitoring nutrient levels, such as ammonia and phosphorous, is essential to ensure efficient removal and comply with regulatory standards.
Sludge Management
Efficient sludge management is an important aspect of SBR technology. The settle phase in the SBR process helps produce a compact and dense sludge, reducing the volume of waste generated. Various sludge management techniques, such as sludge thickening, dewatering, and digestion, can be employed to further reduce the volume of sludge and facilitate its management and disposal.
Applications
SBR technology finds application in various wastewater treatment scenarios due to its flexibility and efficiency.
Municipal Wastewater Treatment

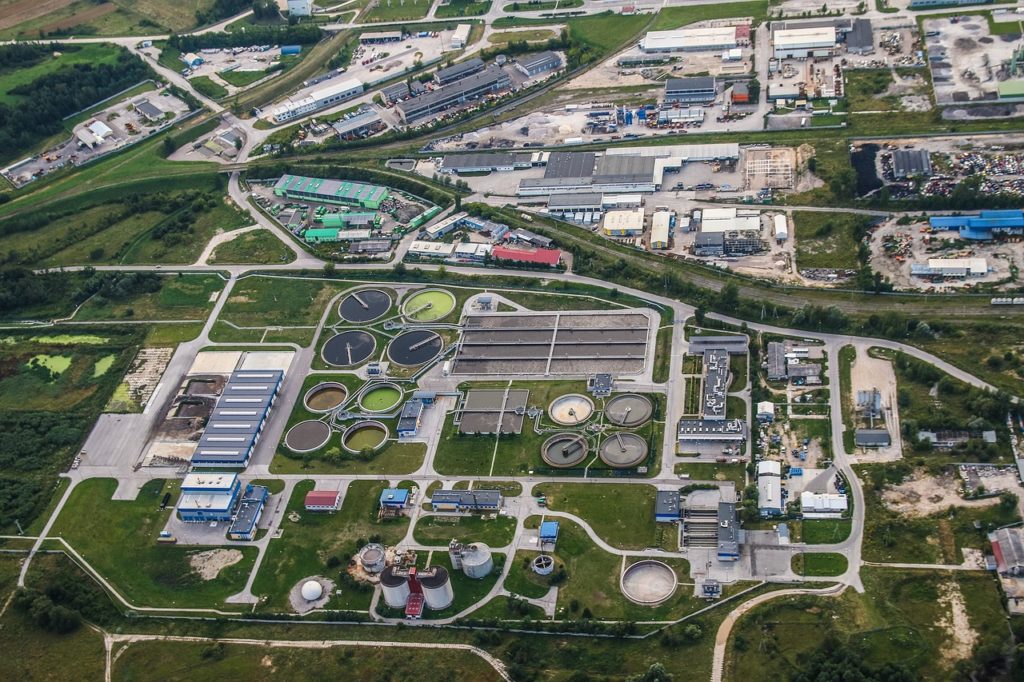

SBR systems are widely used in municipal wastewater treatment plants. They can handle the varying influent flow rates and treatment requirements typically encountered in municipal applications. SBR technology has proven effective in removing organic matter, nutrients, and suspended solids from municipal wastewater, resulting in a high-quality effluent.
Industrial Wastewater Treatment
SBR technology is also suitable for industrial wastewater treatment. It can handle the diverse and complex wastewater characteristics commonly found in industrial applications. SBR systems can be customized to address specific pollutants and treatment objectives, making them adaptable for various industrial sectors, such as food processing, chemical manufacturing, and pharmaceutical production.
Small-Scale Wastewater Treatment
SBR technology is well-suited for small-scale wastewater treatment applications. Its compact design and flexibility make it an ideal choice for residential communities, remote areas, and decentralized treatment facilities. SBR systems can be easily scaled down to meet the treatment requirements of small communities or individual households, providing efficient and reliable wastewater treatment solutions.
Case Studies
To provide a better understanding of the practical applications and benefits of SBR technology, let’s explore two case studies that highlight its effectiveness.
Example 1: Municipal Wastewater Treatment Plant
In a municipal wastewater treatment plant, an SBR system was implemented to address increasing treatment demands and stricter effluent discharge regulations. The SBR technology allowed for efficient nutrient removal, particularly nitrogen and phosphorous, which were critical in meeting the regulatory requirements. The flexibility of the SBR system also proved beneficial in accommodating the variable influent flow rates and treatment needs of the growing population. The compact footprint of the SBR system reduced the overall space requirements compared to conventional treatment processes, making it a cost-effective solution for the municipality.
Example 2: Industrial Wastewater Treatment Facility
An industrial wastewater treatment facility utilizing SBR technology successfully treated complex wastewater generated from a food processing plant. The SBR system effectively removed organic matter, fats, oils, and suspended solids from the wastewater, resulting in a high-quality effluent suitable for discharge. The advanced control system, utilizing a programmable logic controller (PLC), provided precise control over the treatment process and allowed for easy modification to adapt to changing wastewater characteristics. The compact design of the SBR system was particularly beneficial for the limited space available at the industrial site, ensuring efficient treatment within a confined area.
In conclusion, Sequencing Batch Reactor (SBR) technology is a versatile and efficient wastewater treatment process. Its flexible design, high treatment efficiency, and ability to handle various influent characteristics make it suitable for a wide range of applications. With proper monitoring, control, and optimization of key parameters, SBR systems can provide effective and sustainable solutions for municipal, industrial, and small-scale wastewater treatment needs.
